Especificación

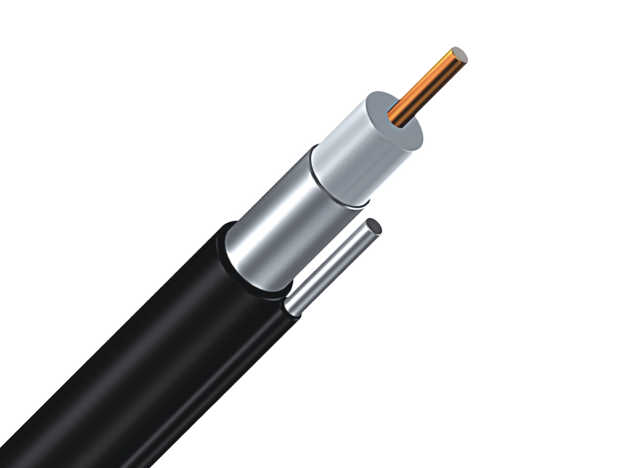

Construcción Básica
| XF-320 | XF-500 | XF-540 | ||
| Conductor | Material | BC/CCA | BC/CCA | BC/CCA |
| Nom.Dia. | 1.8mm | 2.77mm | 3.15mm | |
| Dieléctrico | Material | Foam PE | Foam PE | Foam PE |
| Nom.Dia. | 7.47mm | 11.43mm | 13.03mm | |
| Proteger | Material | Al | Al | Al |
| Cobertura | 0.35mm/0.6mm | 0.35mm/0.6mm | 0.35mm/0.6mm | |
| Chaqueta | Material | PE | PE | PE |
| Nom.Thick. | 0.89mm | 0.76mm | 0.89mm | |
| Nom.Dia. | 10.03mm | 14.22mm | 15.49mm | |
Caracteristicas basicas
| Impedancia nominal (Ohm) | 75±3 | |||
| Velocidad nominal de propagación (%) | 87 | |||
| Capacidad nominal (Pf / m) | 50±3.0 | |||
| Srl(Db) | 30-470 | 20 | ||
| 470-1000 | 20 | |||
|
Atenuación [68°f(20℃)] Máximo (Db/100m) |
Frecuencia (Mhz) | XF-320 | XF-500 | XF-540 |
| 5 | 0.79 | 0.52 | 0.46 | |
| 55 | 2.76 | 1.77 | 1.54 | |
| 250 | 6.1 | 3.58 | 3.38 | |
| 450 | 8.27 | 5.35 | 4.59 | |
| 550 | 9.35 | 5.97 | 5.12 | |
| 750 | 10.96 | 7.09 | 6.07 | |
| 865 | 11.87 | 7.68 | 6.56 | |
| 1000 | 12.76 | 8.27 | 7.12 | |
