Especificación

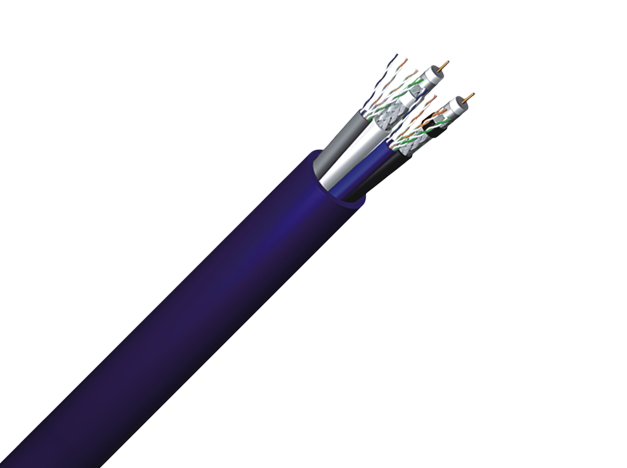

Construcción Básica
|
|
2RG6 | 2CAT5e | 2CAT6 | |
| Conductor | Material | CCS/BC | BC | BC |
| Nom.Dia. | 1.02±0.01mm | 0.50±0.01mm | 0.565±0.005mm | |
| Dieléctrico | Material | Foam PE | HDPE | HDPE |
| Nom.Dia. | 4.57±0.01mm | 0.90±0.03mm | 1.0±0.03mm | |
| Proteger | Material | Al Foil+Al Braiding | / | / |
| Cobertura | 95% | / | / | |
| Chaqueta interior | Material | PVC | PVC | PVC |
| Nom.Dia. | 6.9±0.10mm | 5.0±0.10mm | 6.3±0.10mm | |
| Chaqueta externa | Material | PVC | PVC | PVC |
| Nom.Dia. | 15~16.5mm | 15~16.5mm | 15~16.5mm | |
Caracteristicas basicas
| Impedancia nominal (Ohm) | 75±3 | 100±15 | 100±3 | ||||
| Velocidad nominal de propagación (%) | 83% | 69% | 69% | ||||
| Capacidad nominal (Pf / m) | 53.1 | 5.6 | 5.6 | ||||
|
Atenuación [68°f(20℃)] |
2RG6 | 2CAT5e | 2CAT6 | ||||
| Frecuencia (Mhz) | Máximo (Db/100m) | Frecuencia (Mhz) | Máximo (Db/100m) | Frecuencia (Mhz) | Máximo (Db/100m) | ||
| 5 | 2.20 | 1.0 | 2.0 | 1.0 | 1.9 | ||
| 55 | 5.25 | 4.0 | 4.1 | 4.0 | 3.7 | ||
| 211 | 9.42 | 10.0 | 6.5 | 10. | 5.9 | ||
| 300 | 11.25 | 20.0 | 9.3 | 20.0 | 8.4 | ||
| 400 | 13.12 | 25.0 | 10.4 | 25.0 | 9.5 | ||
| 550 | 15.45 | 31.25 | 11.7 | 31.25 | 10.6 | ||
| 750 | 18.34 | 62.5 | 17.0 | 62.5 | 15.4 | ||
| 1000 | 21.46 | 100 | 22 | 100 | 19.8 | ||
