Especificación

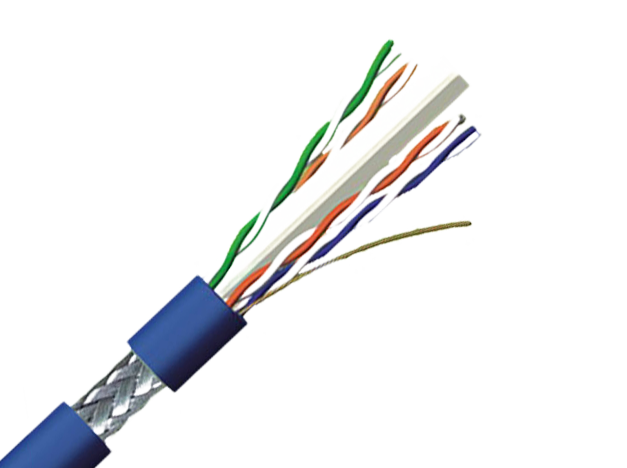

Construcción de cable(CAT6)
| Center Conductor | 0.57mm Copper*2*4 Pairs |
| Dieléctrico | 1.09±0.03mmPE |
| Proteger | Al Foil |
| Chaqueta | PVC |
| Nom.Thick | 0.55±0.05mm |
| Nom.Od(Mm) | 7.8±0.3mm |
| Marcado de cables | According Client's Of Request |
Características electricas
| Frecuencia (Mhz) | Atenuación(Db/100m) | Pérdida de retorno (Db/100m) | Siguiente (Db/100m) | Elfext(Db/100m) |
| 1 | 2.03 | 20.00 | 74.3 | 67.8 |
| 4 | 3.78 | 23.00 | 65.3 | 55.8 |
| 8 | 5.32 | 24.50 | 60.8 | 49.7 |
| 10 | 5.95 | 25.00 | 59.3 | 47.8 |
| 16 | 7.55 | 25.00 | 56.2 | 43.7 |
| 25 | 9.51 | 24.30 | 53.3 | 39.8 |
| 31.25 | 10.67 | 23.60 | 51.9 | 37.9 |
| 62.5 | 15.38 | 21.50 | 47.7 | 31.9 |
| 100 | 19.80 | 20.10 | 44.3 | 27.8 |
| 200 | 28.98 | 18.00 | 39.8 | 21.8 |
| 250 | 32.85 | 17.3 | 38.3 | 19.8 |
