Especificación

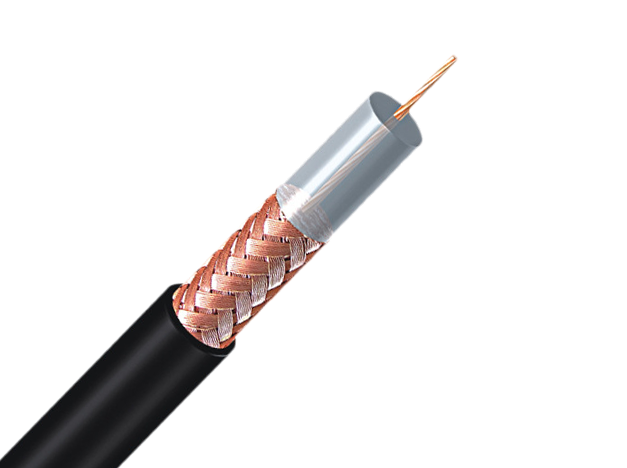

Construcción Básica
| RG213 | RG214 | ||
| Conductor | Material | BC | TC |
| Nom.Dia. | 13awg/7*0.75mm | 13awg/7*0.75mm | |
| Dieléctrico | Material | PE | PE |
| Nom.Dia. | 7.24mm | 7.25mm | |
| Proteger | Material | BC Brdiding | TC Brdiding |
| Cobertura | 96% | 96%-98% | |
| Chaqueta | Material | PVC/PE | PVC/PE |
| Nom.Thick. | ≥1.0mm | ≥1.0mm | |
| Nom.Dia. | 10.3mm±0.10mm | 10.80mm±0.10mm |
Caracteristicas basicas
| Impedancia nominal (Ohm) | 50±2 | 50±2 | |||
| Velocidad nominal de propagación (%) | 66 | 66 | |||
| Capacidad nominal (Pf / m) | 100 | 100 | |||
| Prueba Sparker (Vac) | 5000 | 5000 | |||
| Srl(Db) | 50-1000 | 20 | 20 | ||
| 1000-3000 | 20 | 20 | |||
|
Atenuación [68° f(20℃)] |
Frecuencia(Mhz) | Máximo(Db/100ft) | Máximo(Db/100m) | ||
| 10 | 0.55 | 6.20 | 1.80 | 2.03 | |
| 50 | 1.34 | 1.50 | 4.40 | 4.92 | |
| 100 | 2.07 | 2.10 | 6.80 | 6.90 | |
| 200 | 2.96 | 2.99 | 9.70 | 9.80 | |
| 400 | 4.61 | 4.79 | 15.10 | 15.70 | |
| 500 | 4.94 | 4.97 | 16.20 | 16.30 | |
| 600 | / | 5.67 | / | 18.60 | |
| 800 | 6.56 | 7.02 | 21.50 | 23.00 | |
| 1000 | 7.47 | 8.20 | 24.50 | 26.90 | |
